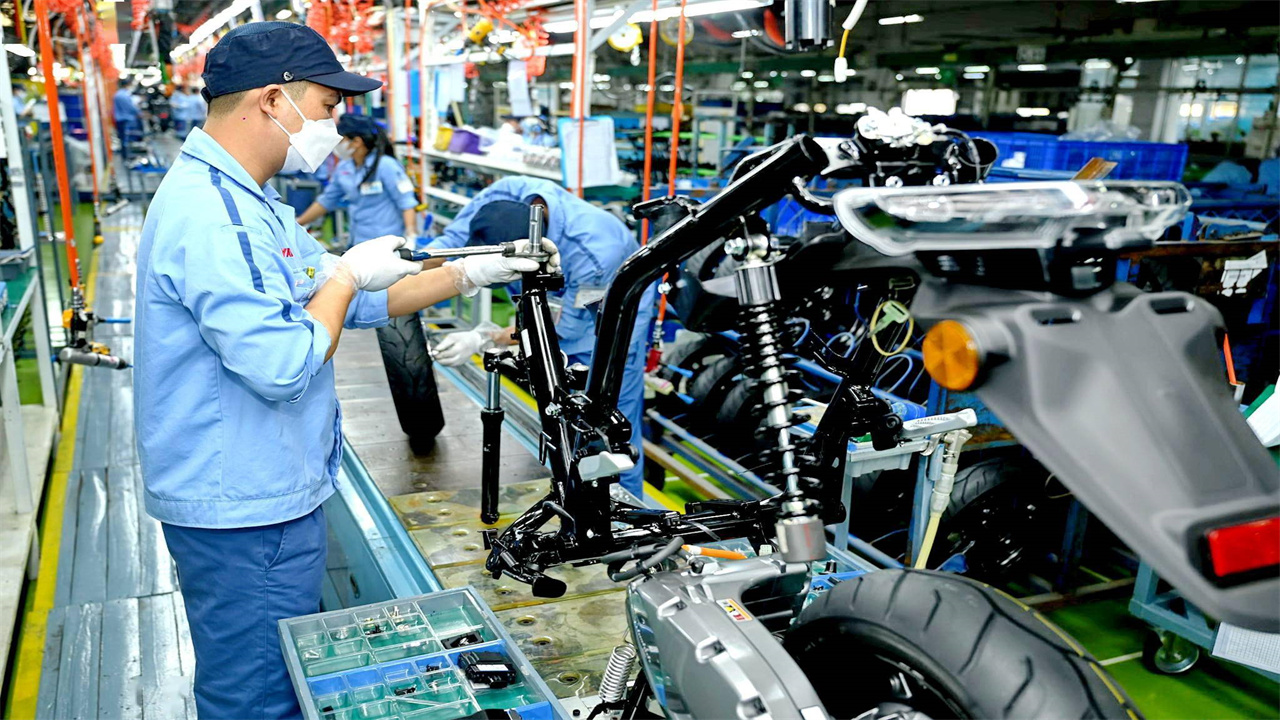

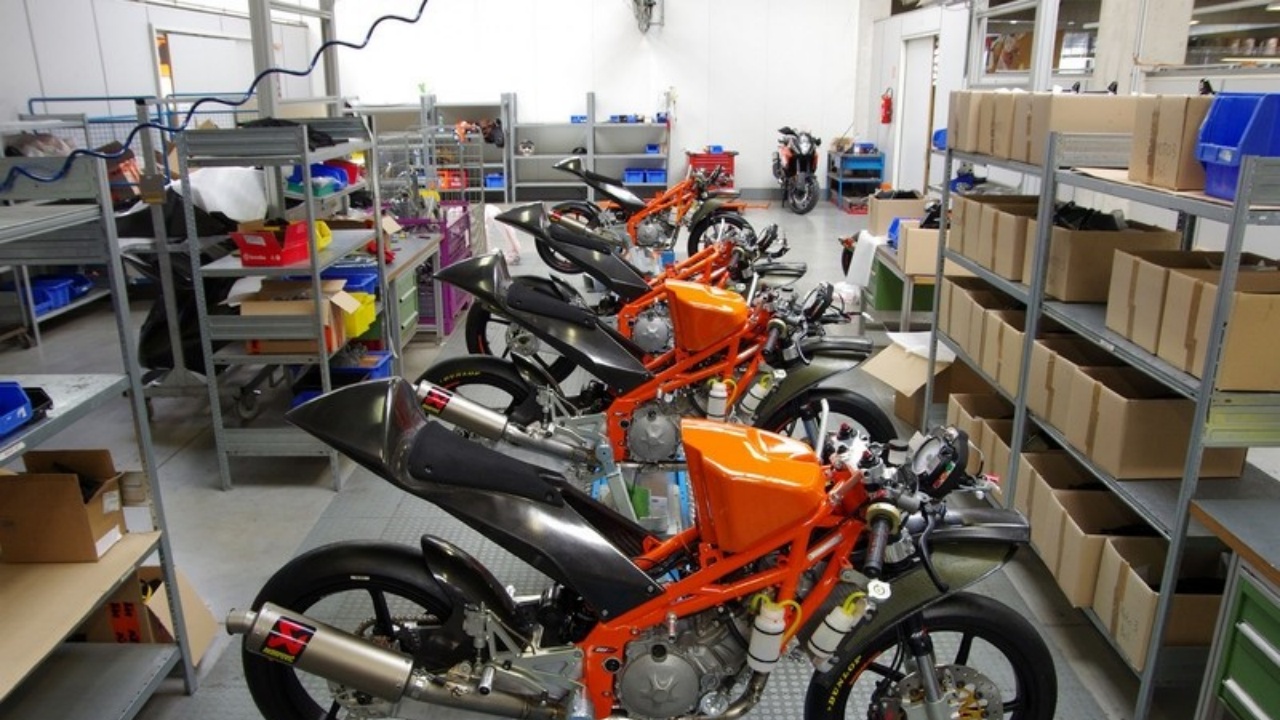

Motorcycle/E-bike Scooter Assembly Line
The Motorcycle/E-bike Scooter Assembly Line integrates advanced technologies for efficient production. It starts with part inspection and proceeds to frame assembly, engine installation, and the incremental assembly of systems like suspension, brakes, and electrical. Each step is followed by testing to ensure accuracy and performance. Modern lines use RGV systems for material transport and assembly robots for precision tasks, enhancing efficiency and quality.2024-09-15
-
TV Assembly Line Factory
The TV assembly line efficiently assembles TVs, starting with component prep to final testing. Key parts like screens, circuit boards, and speakers are prepared. Displays are mounted, and the housing is assembled. Power supplies and cables are connected, and components are integrated. Performance and safety tests ensure functionality and compliance. Aesthetic checks are followed by a comprehensive final inspection. Qualified TVs are packaged for shipping.2024-09-15
-
Washing Machine Assembly Line Factory
The washing machine assembly line assembles components into a finished product efficiently. It starts with preparing key parts like tubs, motors, and control boards. The inner and outer tubs are assembled, and the motor is connected to the drive system. The control board is wired, and the casing with the door is fitted. The water inlet and drain systems are installed. The door and lock are mounted, and the machine is tested for washing, spinning, and safety features.2024-09-15
-
Refrigerator Assembly Line Factory
The refrigerator assembly line carefully assembles fridges from components to final checks. It begins with the shell and liner assembly, then installs the refrigeration system with compressors and heat exchangers. Doors are equipped with gaskets and shelves. Electrical components and lighting are wired, and refrigerant lines are filled, ensuring no leaks. Testing includes cooling efficiency and electrical safety. Aesthetic inspections are conducted, and a thorough final check is made.2024-09-15
-
Air Conditioner Assembly Line Factory
The air conditioner assembly line assembles units with precision. It begins with preparing components like compressors and heat exchangers. The frame and casing are assembled, followed by the installation of the compressor and electrical circuitry. Fans and motors are fitted, and refrigerant lines are connected. Systems are charged with refrigerant and tested for leaks and performance. Electrical safety is verified, and the unit's appearance is inspected.2024-09-15
-
Tractor Assembly Line Factory
The tractor assembly line assembles tractors with a focus on durability and performance. It starts with chassis and engine installation, followed by powertrain and hydraulic system assembly. The cab is fitted with controls and electronics. Wheels and tires are mounted, and brakes are installed. PTO and hitch components are added, and the tractor is painted for corrosion resistance. Interiors are trimmed, and a thorough quality inspection is conducted.2024-09-15
-

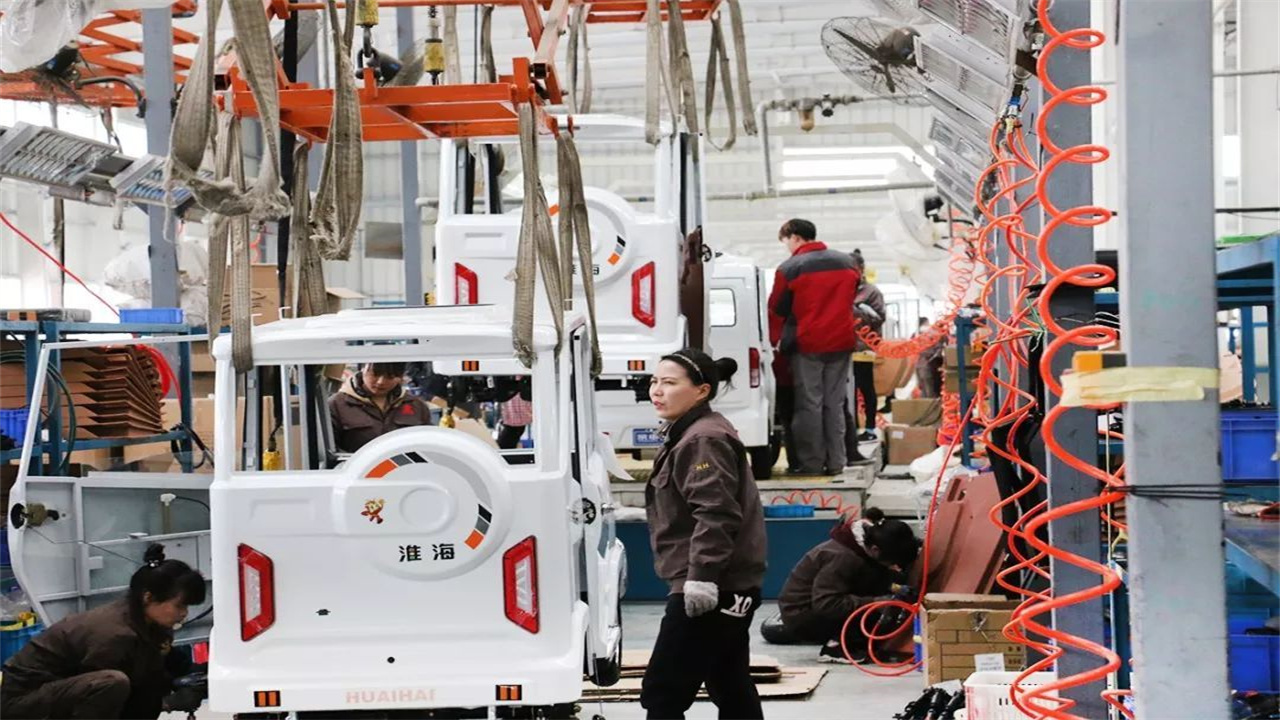

Tricycle Assembly Line Factory
The tricycle assembly line efficiently assembles tricycles with a focus on quality. It begins with frame assembly, followed by wheel installation. For drive systems, chains are fitted for manual tricycles, while electric models have motors and batteries installed. Braking systems are then put in place. Seats and handlebars are added for comfort and control. Electrical wiring is carefully managed for electric tricycles. Each tricycle undergoes functional testing and rigorous quality inspections.2024-09-15
-
E-scooter Assembly Line Factory
The E-scooter assembly line assembles electric scooters with precision. It starts with preparing components like batteries, motors, controllers, and frames. The frame is assembled, followed by the secure installation of the battery pack. Motors are attached and connected to the wheels. Controllers are installed to manage scooter functions. Wheels are mounted, and brakes are set up. Wiring is carefully done, ensuring all connections are safe and watertight.2024-09-15
-

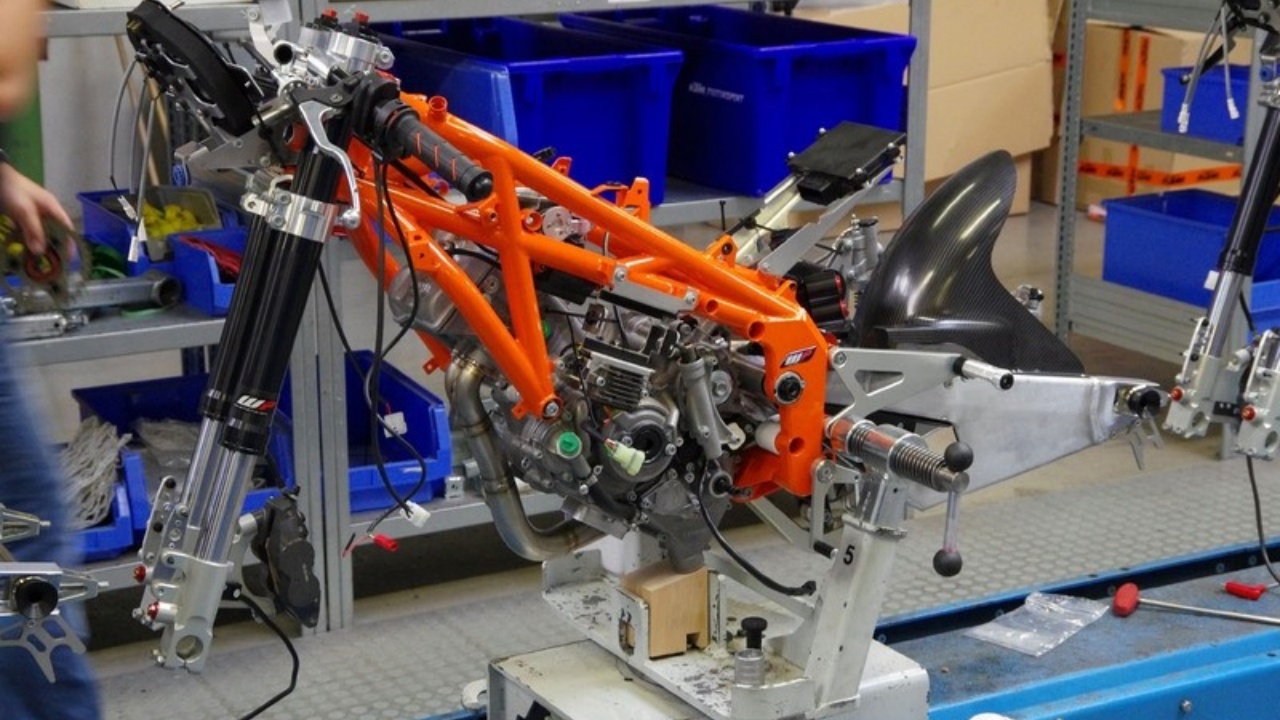

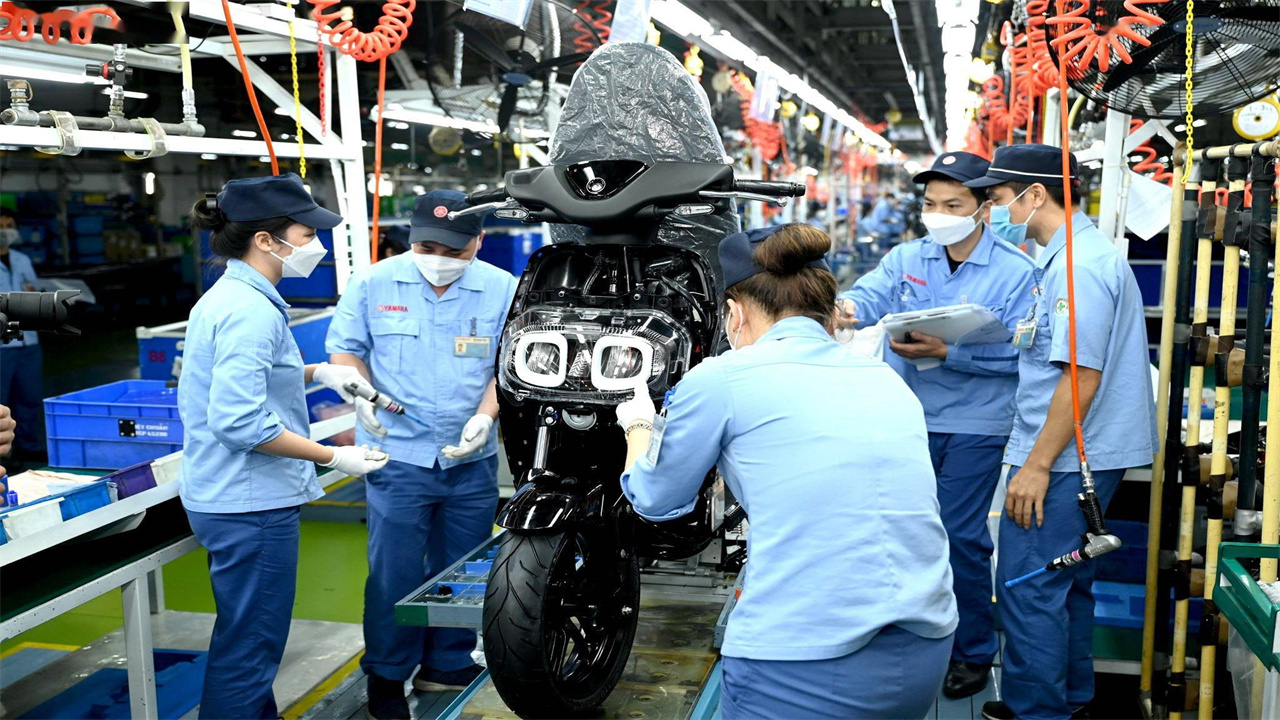

Motorcycle Assembly Line Factory
The motorcycle assembly line efficiently assembles quality motorcycles. Frames are welded, and key components like engines and suspensions are assembled and tested. Frames are painted with an automated process for durability. Engines, wheels, and seats are then installed, and electronics are wired and tested. Brakes are fitted and adjusted for safety. The line ensures quality through checks and balances, with final inspections and test rides before packaging motorcycles for shipment.2024-09-15
-

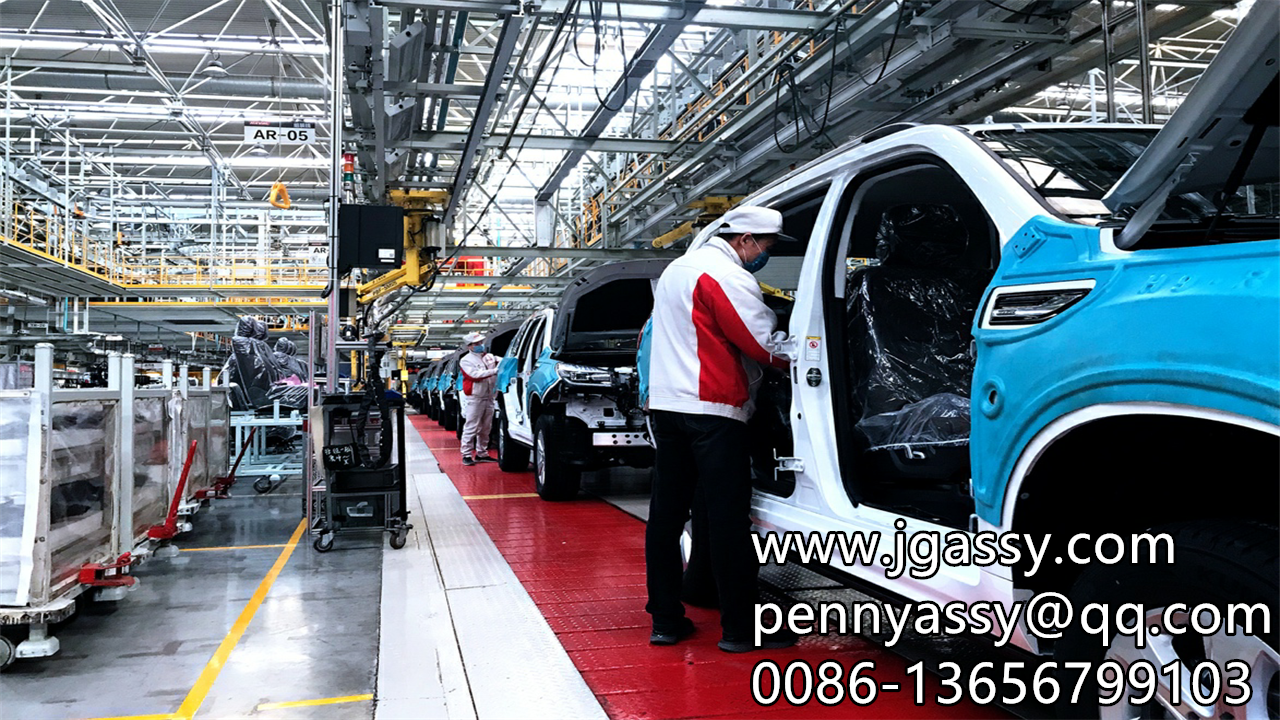

EV Assembly Line Factory
The electric vehicle (EV) assembly line integrates automated technology, from the assembly of batteries and motors to the construction of the vehicle body, and then to the painting and installation of interior and exterior trim. The entire process includes rigorous testing and quality control to ensure the performance and safety of each vehicle. Finally, the finished EVs are delivered to customers, reflecting the efficiency and environmental sustainability of modern manufacturing.2024-09-15
-

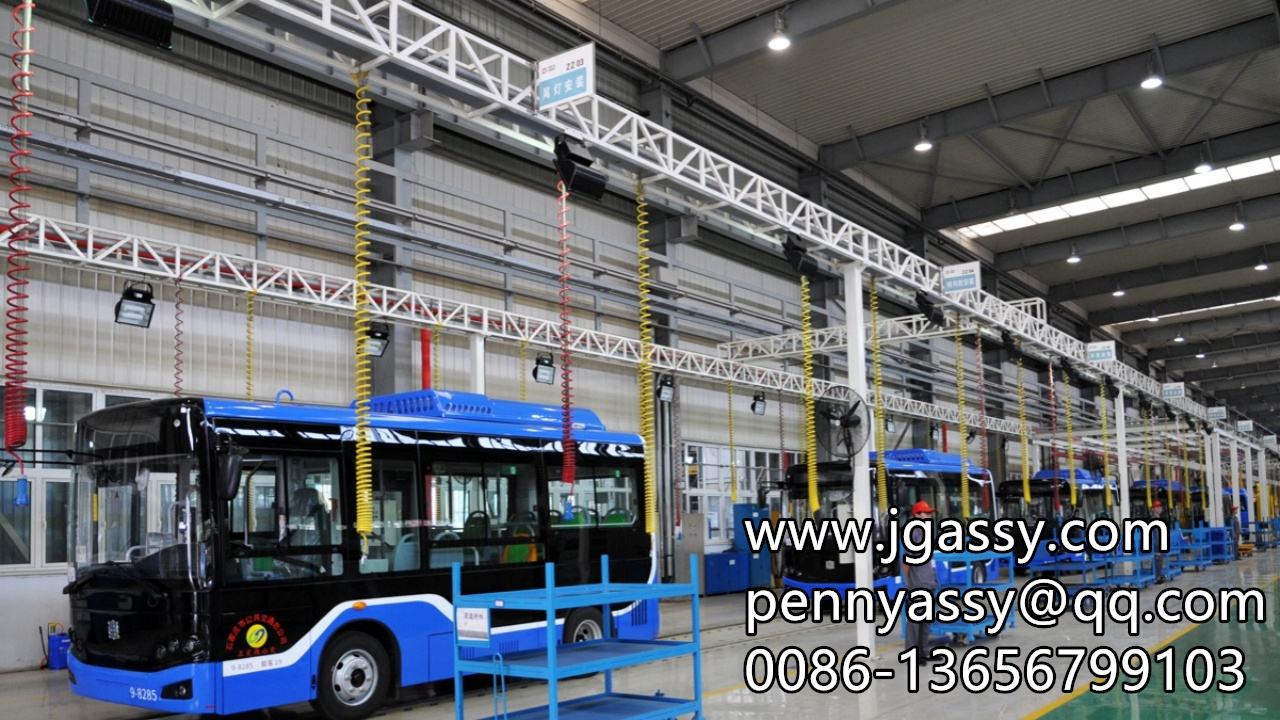

Bus Assembly Line Factory
The bus assembly line encompasses key stages from welding the frame to delivering the final product. It starts with automated welding of the bus skeleton, followed by the assembly of the body, including floors and walls. Painting involves applying primer, color, and clear coats. Interiors are fitted with seats, air conditioning, and lighting. Electrical systems are installed, including controls and entertainment. The chassis is assembled with the engine and suspension, and wheels are mounted.2024-09-15
-
Pickup Assembly Line Factory
The pickup truck assembly line is dedicated to efficiently assembling pickup vehicles. It includes raw material processing, body welding, painting, and final quality inspection before shipping. The process is highly automated and ensures product quality with precision equipment and strict procedures. Advanced technologies like IoT and AI are increasingly integrated into these lines. Some lines use SKD or CKD models for assembly.2024-09-15
-

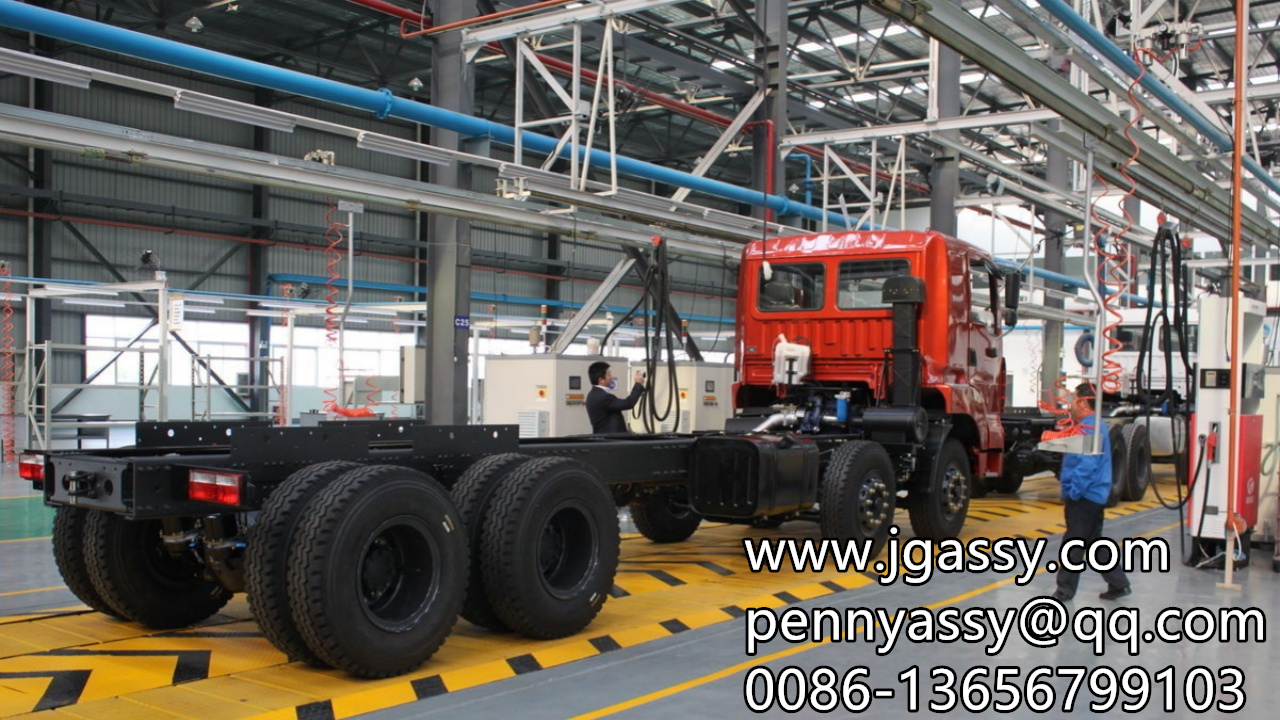

Chinese Heavy Truck Assembly Line
The heavy-duty truck assembly line is used for producing large commercial vehicles, encompassing key steps such as material inspection, component processing, chassis assembly, cab installation, powertrain installation, electrical system integration, and tire fitting. The line features high automation, flexible modular design, strict quality control, and integrated information systems, ensuring production efficiency and product quality.2024-09-14
-
Chinese Light Truck Assembly Line
Light truck assembly lines are vital for assembling high-quality light-duty trucks. They include key processes such as frame assembly, wiring, axle fitting, engine installation, and electronic system setup. Advanced testing and inspection ensure vehicle reliability. With a trend towards electrification and intelligence, these assembly lines are evolving with automation and information systems, meeting market demands and environmental standards.2024-09-13
-

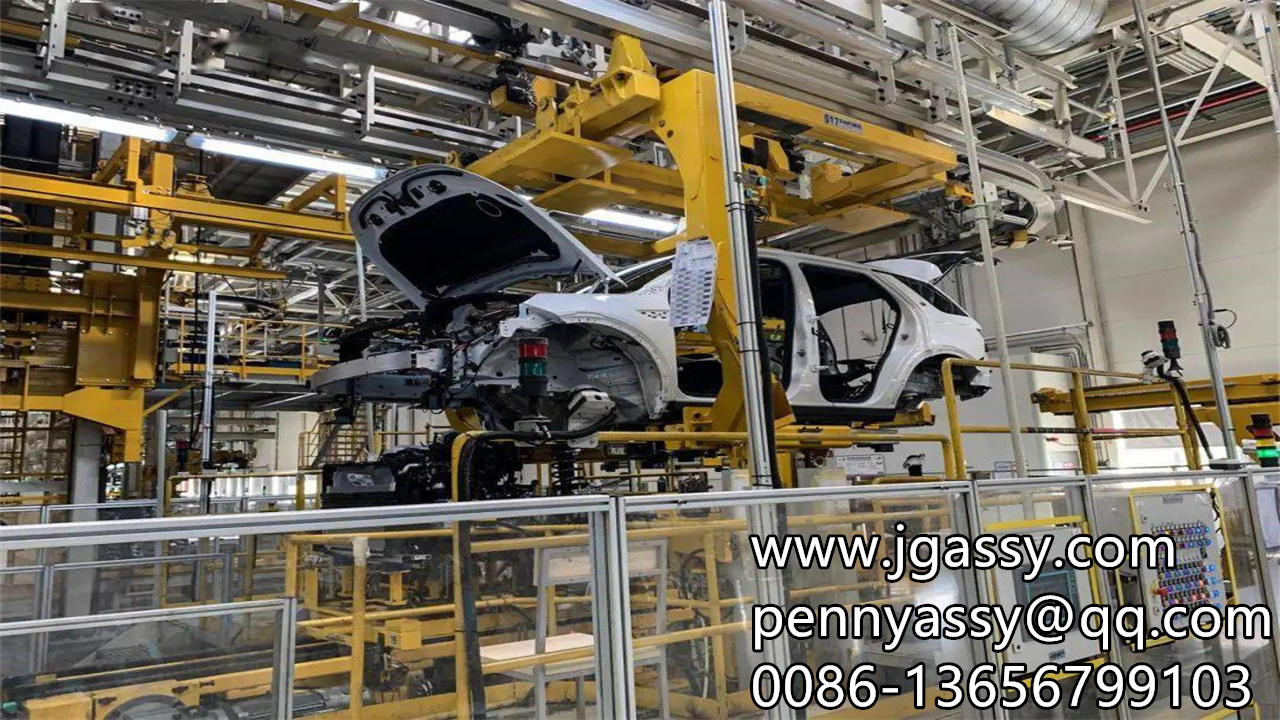

SUV Assembly Line
SUV assembly lines play a vital role in the automotive sector, featuring pre-fabricated components and modular designs for efficient production. They employ automation to improve precision and integrate advanced technologies for process optimization. These lines prioritize quality and adaptability, capable of handling various vehicle models and market demands.2024-09-13
-
Sedan Assembly Line
The sedan assembly line is critical for car manufacturing, ensuring cars are produced efficiently and with high quality. It includes multiple specialized lines and uses a mix of automated equipment and manual operations. The assembly process is managed by field bus control systems and I/O devices for seamless communication and operation. Key technical aspects involve setting the right assembly pace and designing workstations with ergonomics in mind.2024-09-13
